• Body/Material: Heavy Duty Cast Aluminum
• Finish: Black, Brown or White
• Power: 3+3W AC/DC LED 12V
• Color Temperature: 3CCT
• Lumens: 270-720 (Based on Color Changing)
• Beam Angle: °
• Dimmable: No

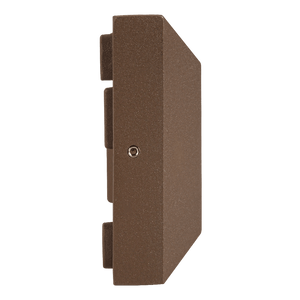

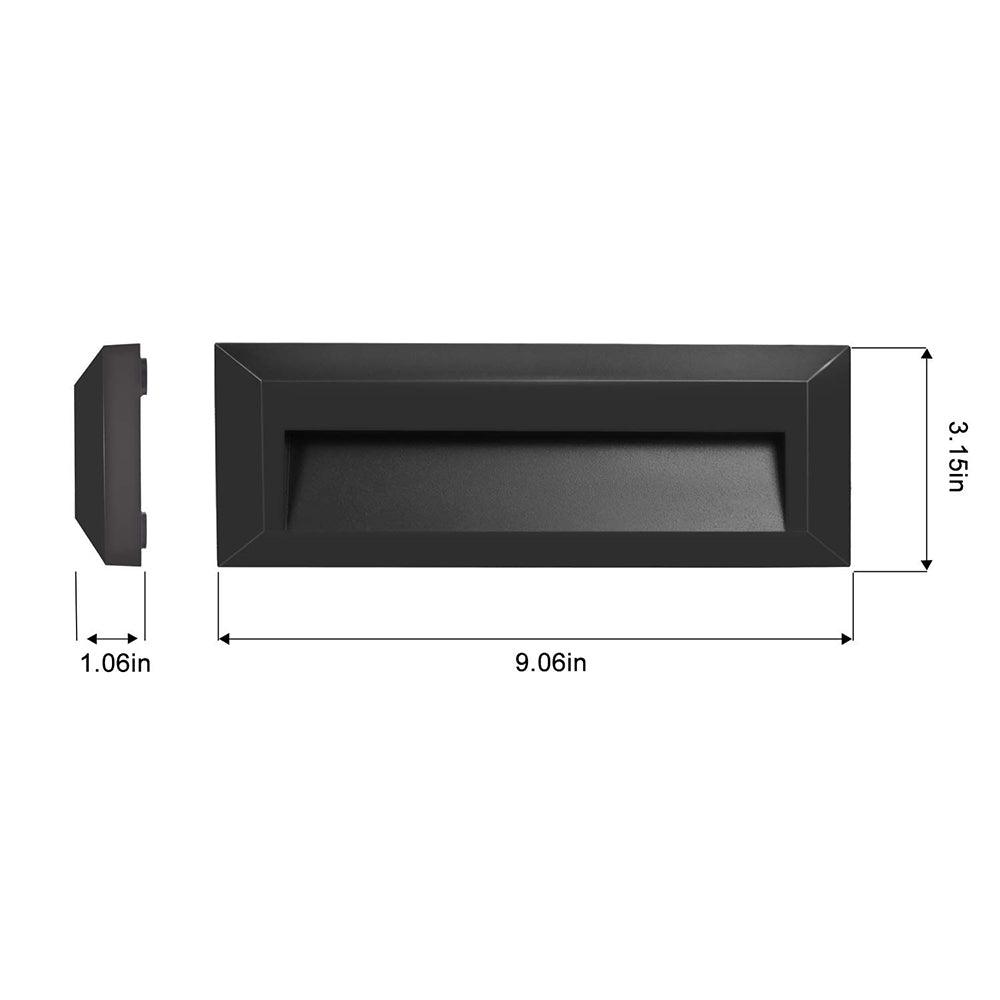

• Size: 3.16 (H) x 8.8” (L) x 1.22″(D)
• Waterproof rating: IP65
• Feature: Surface Mount
• Master Box: 24 Pcs

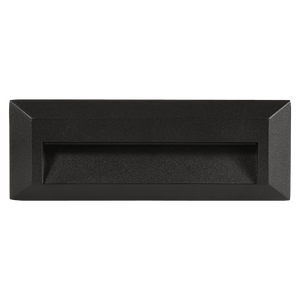

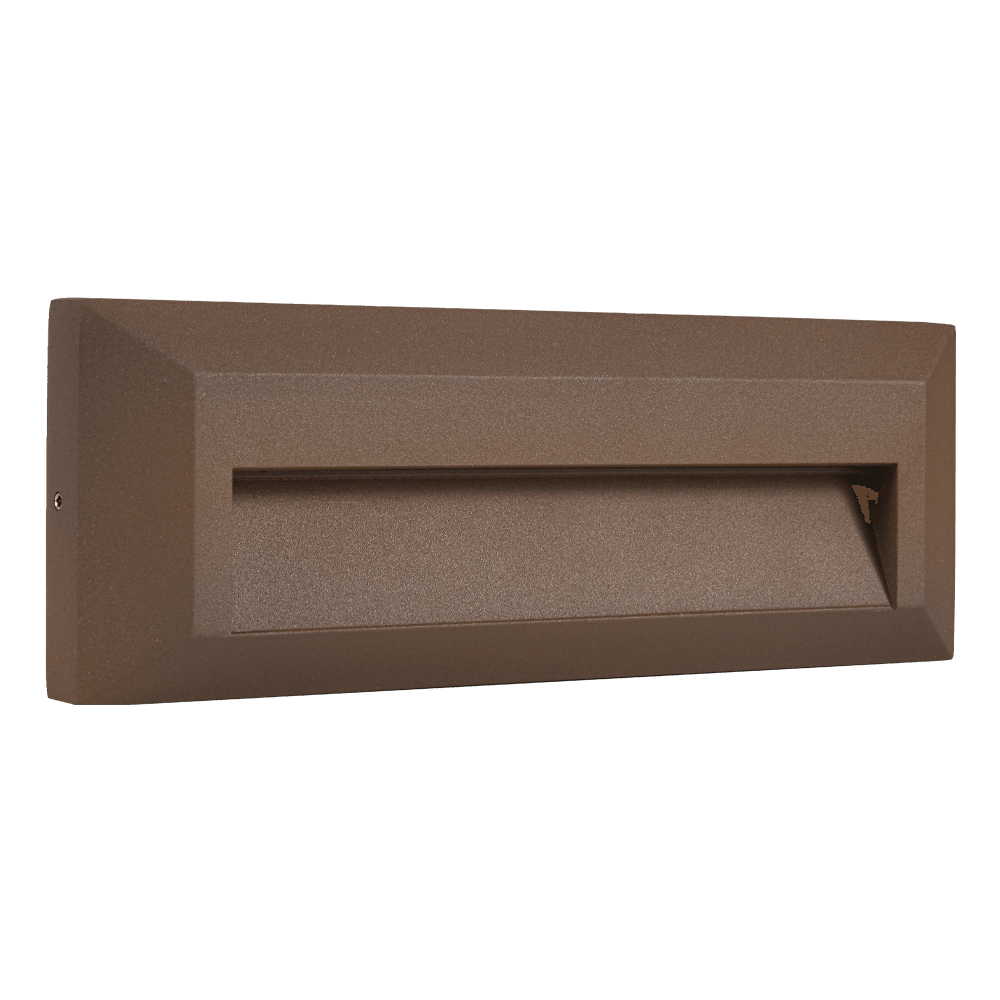

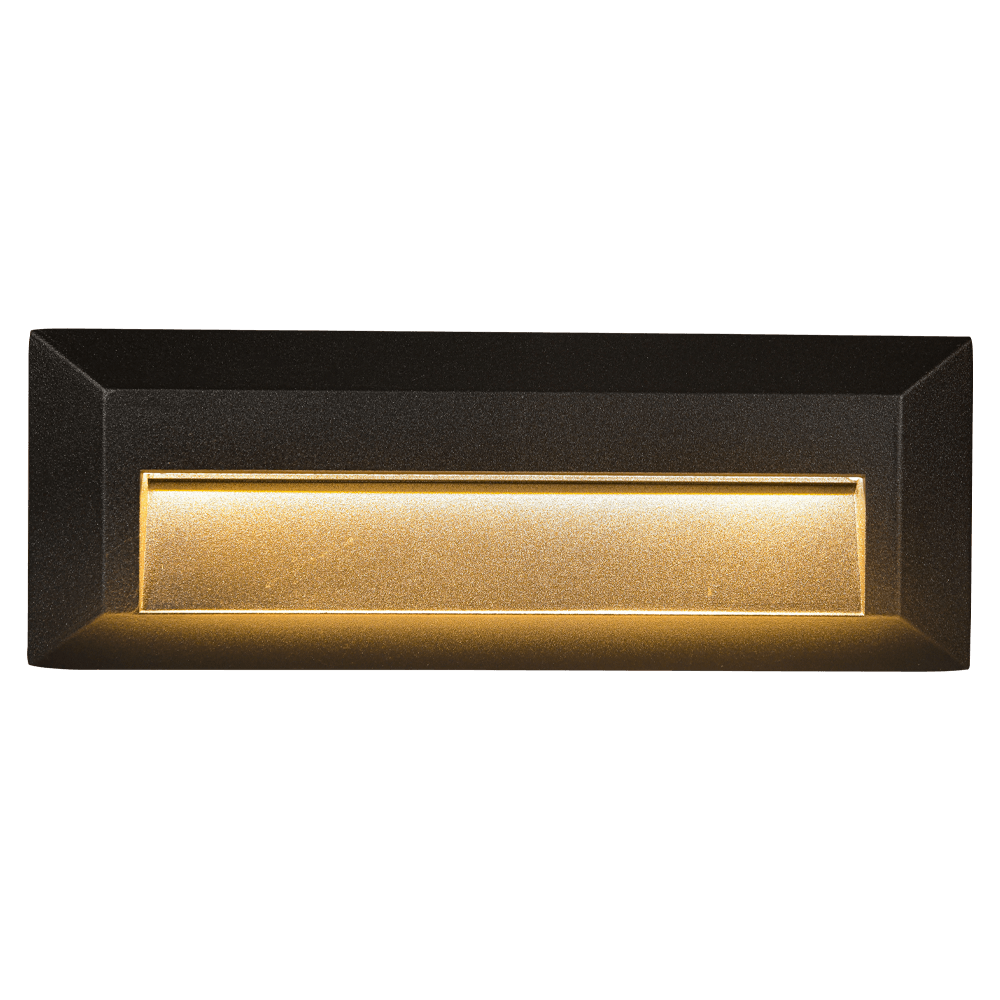

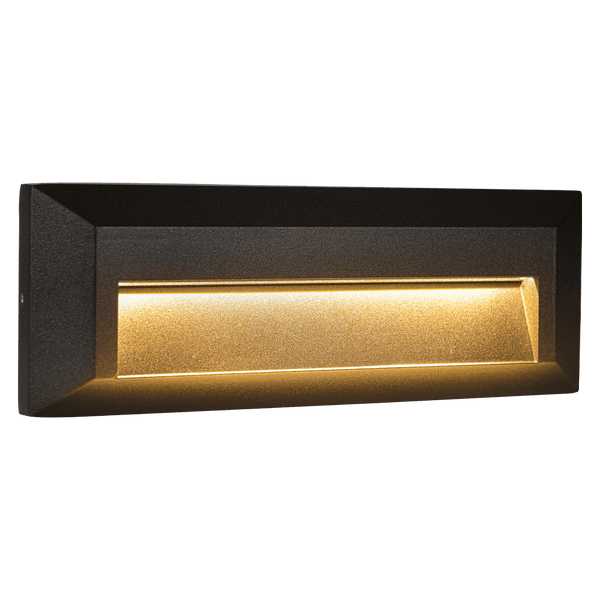

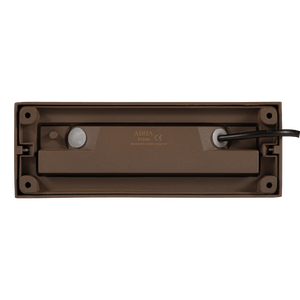

The STA04 is a premium horizontal LED step and deck light that seamlessly blends contemporary design with high-performance durability. Built from heavy-duty cast aluminum and finished in Black, Brown, or White, this fixture offers a refined, modern profile that complements both residential and commercial spaces.

Key Features

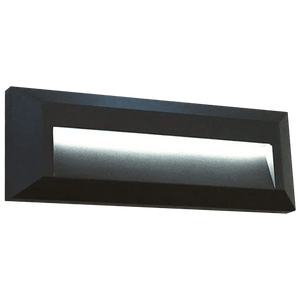

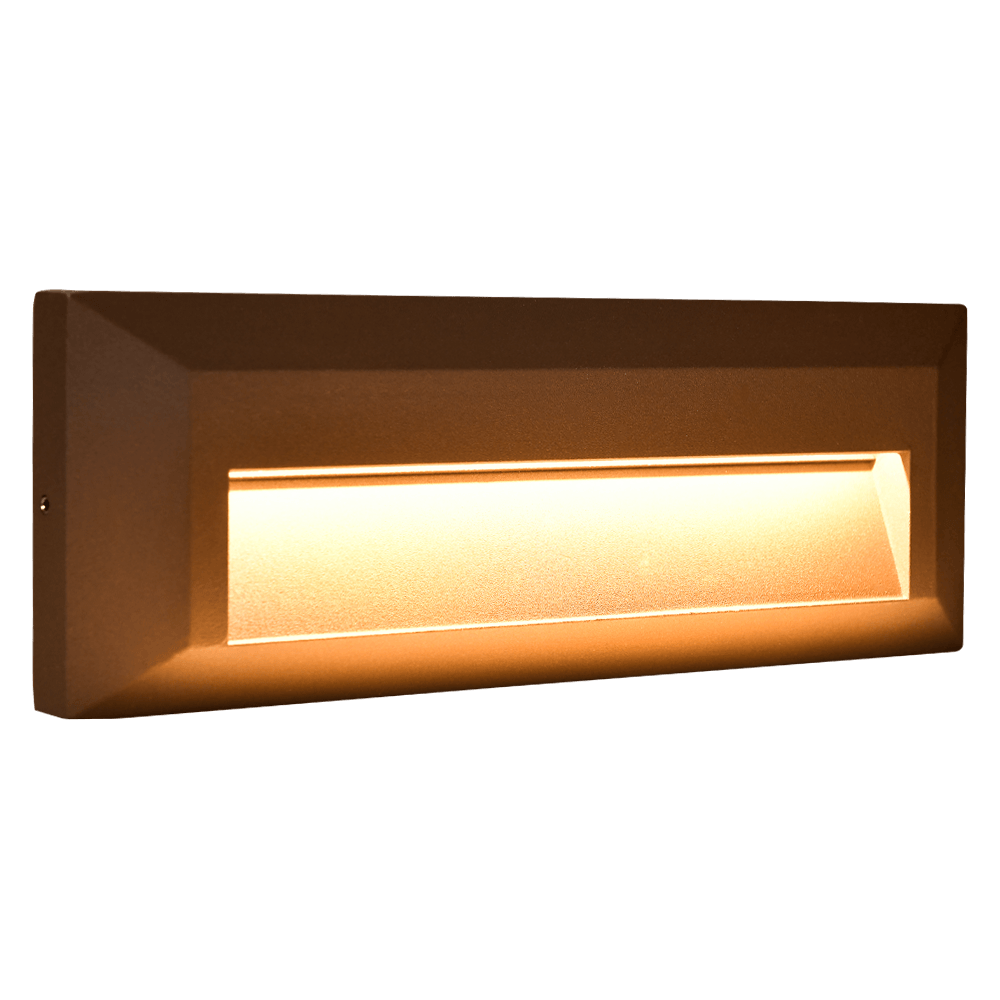

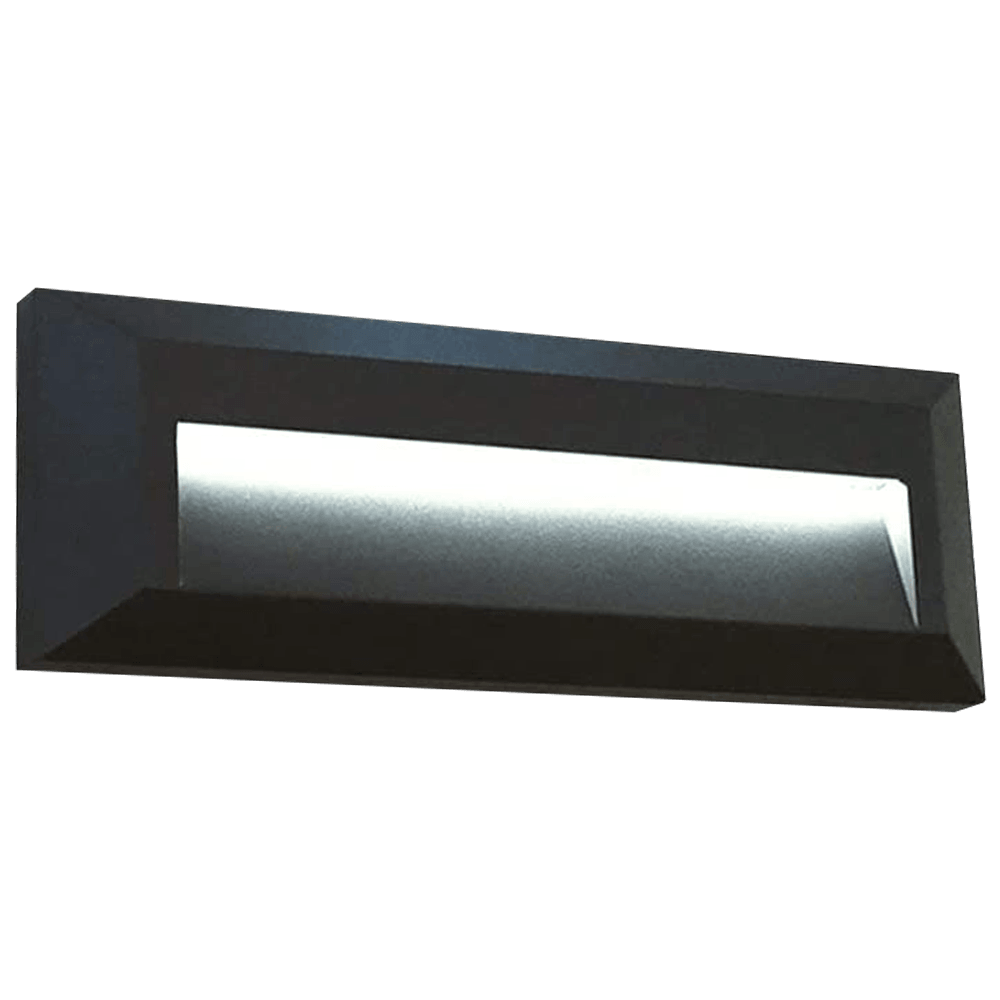

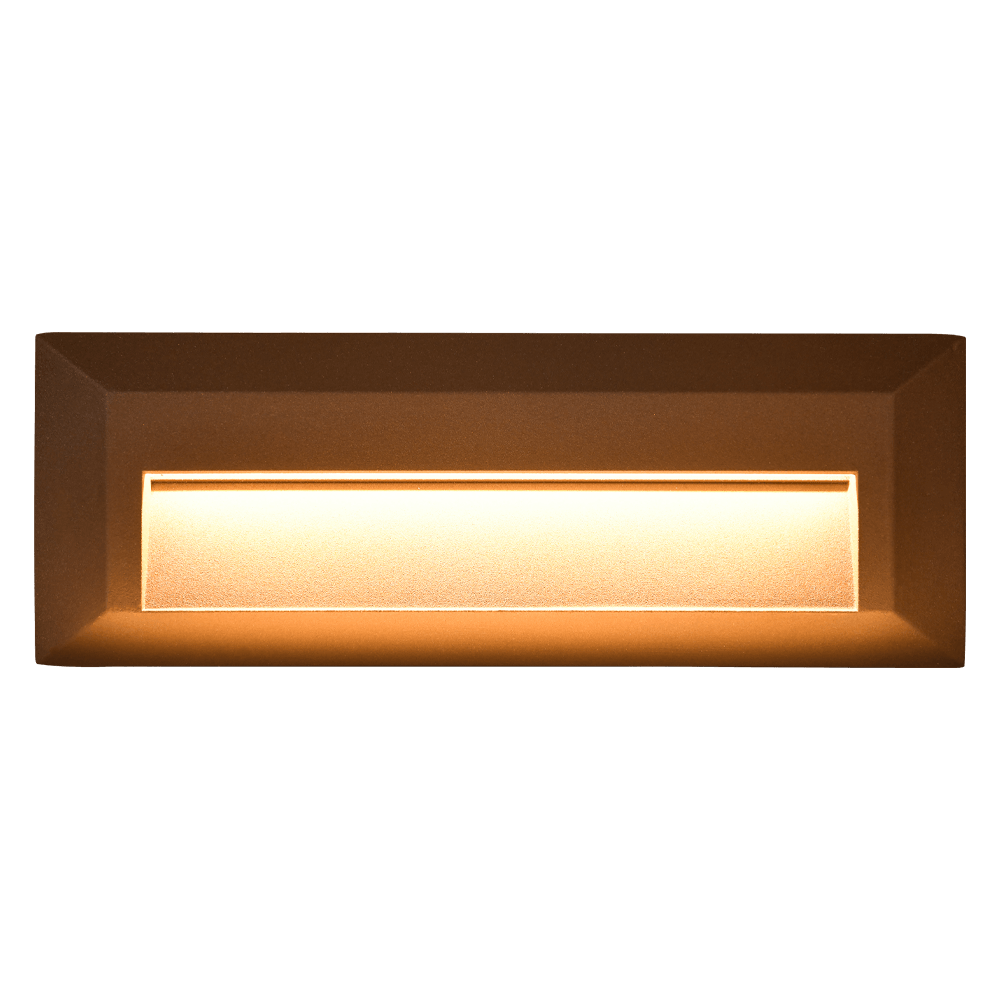

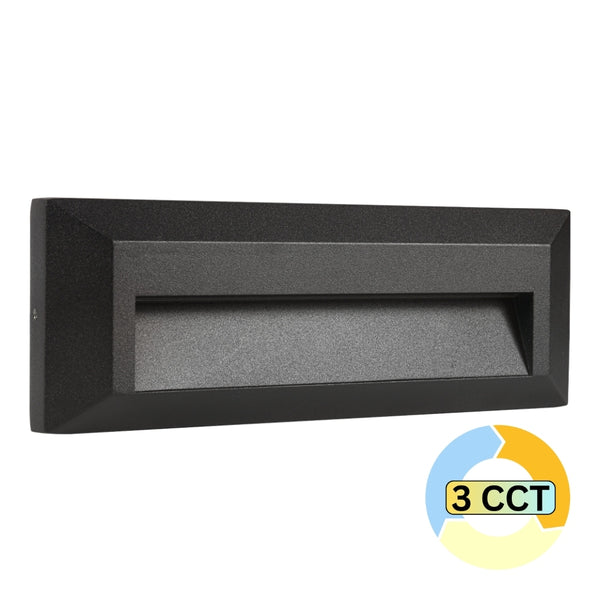

• 3‑CCT Selectable LED: Adjust between 3000K (Warm White), 4000K (Neutral White), and 5000K (Cool White) to match any lighting scheme—all within the same fixture.

• Low-Voltage Efficiency: Powered by 12 V AC/DC, consuming just 3 W + 3 W for a total of 270–720 lumens, depending on CCT selection.

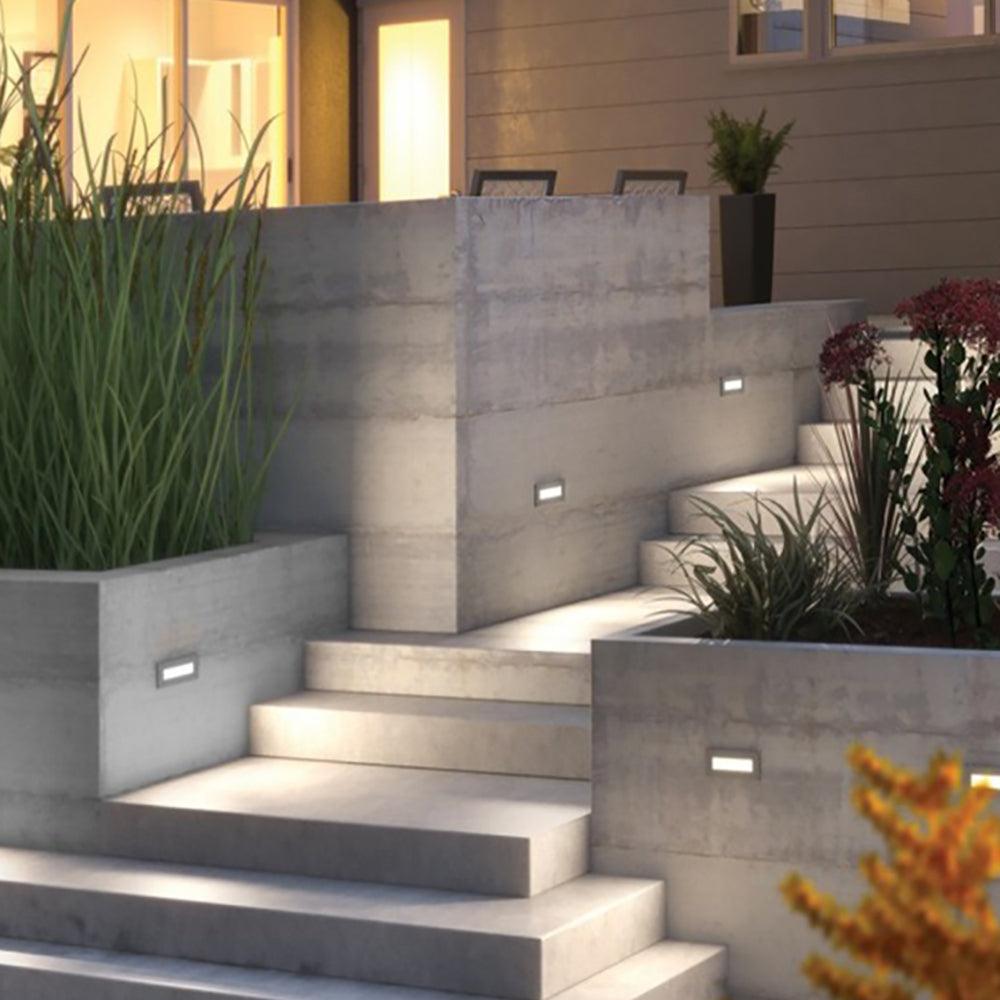

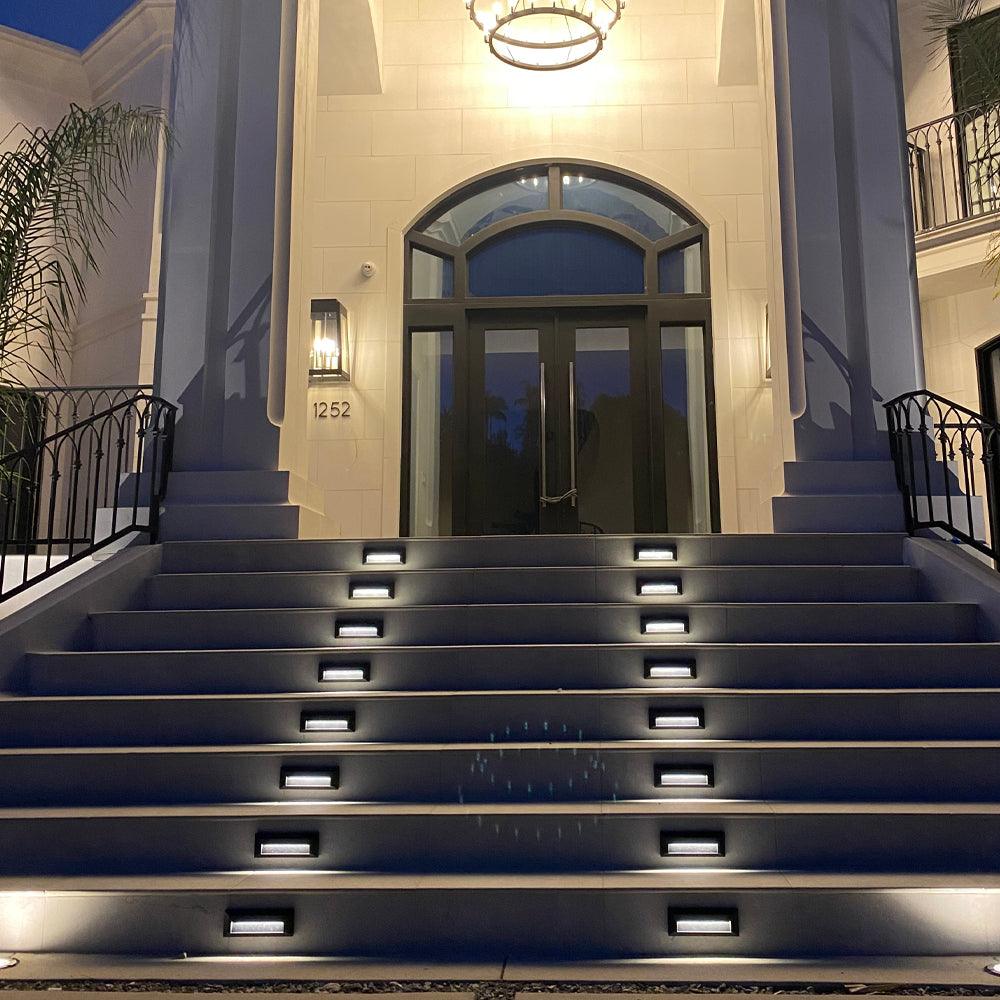

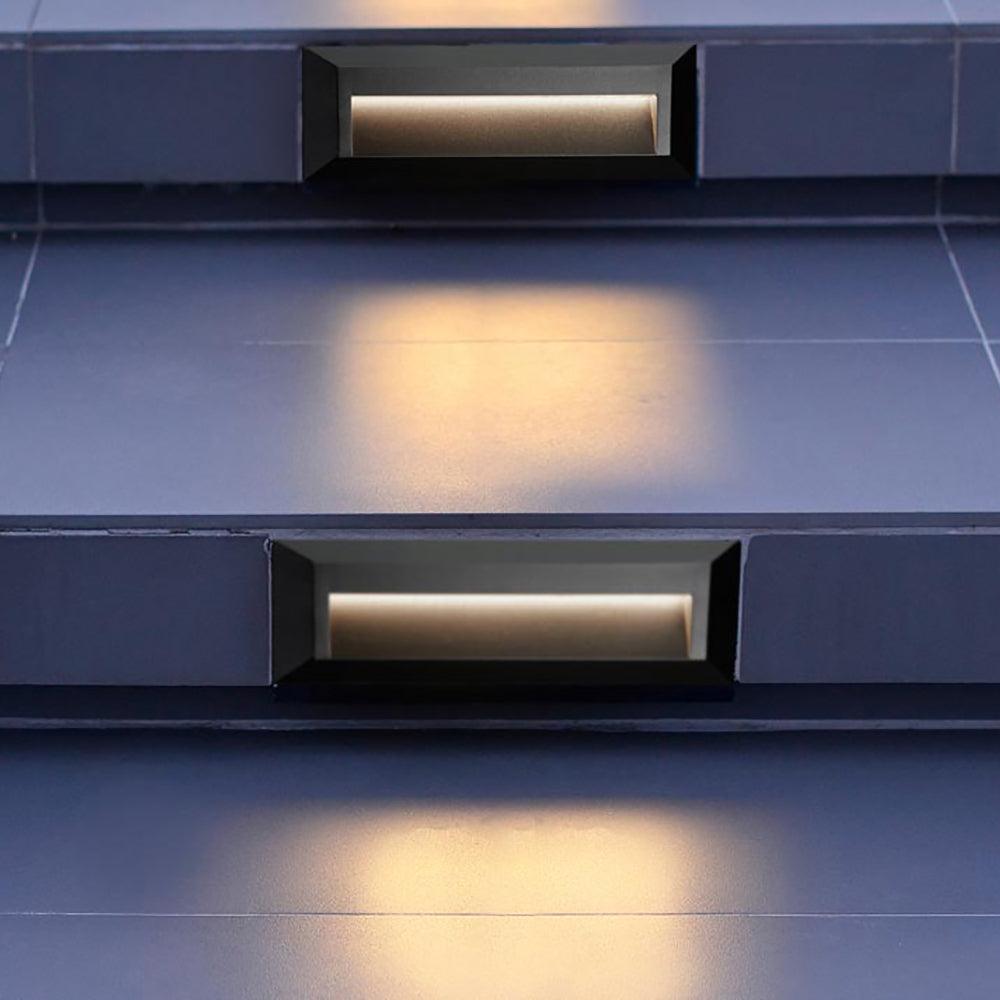

• IP65 Weatherproof: Fully sealed against dust and jets of water, making it ideal for outdoor step, deck, and wall installations.

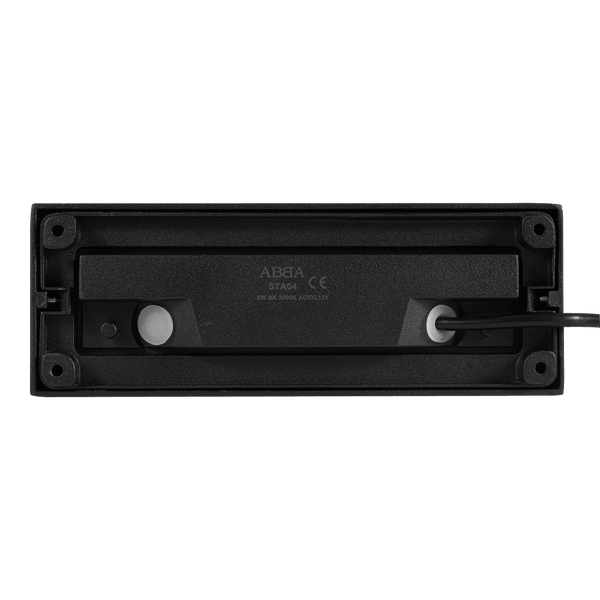

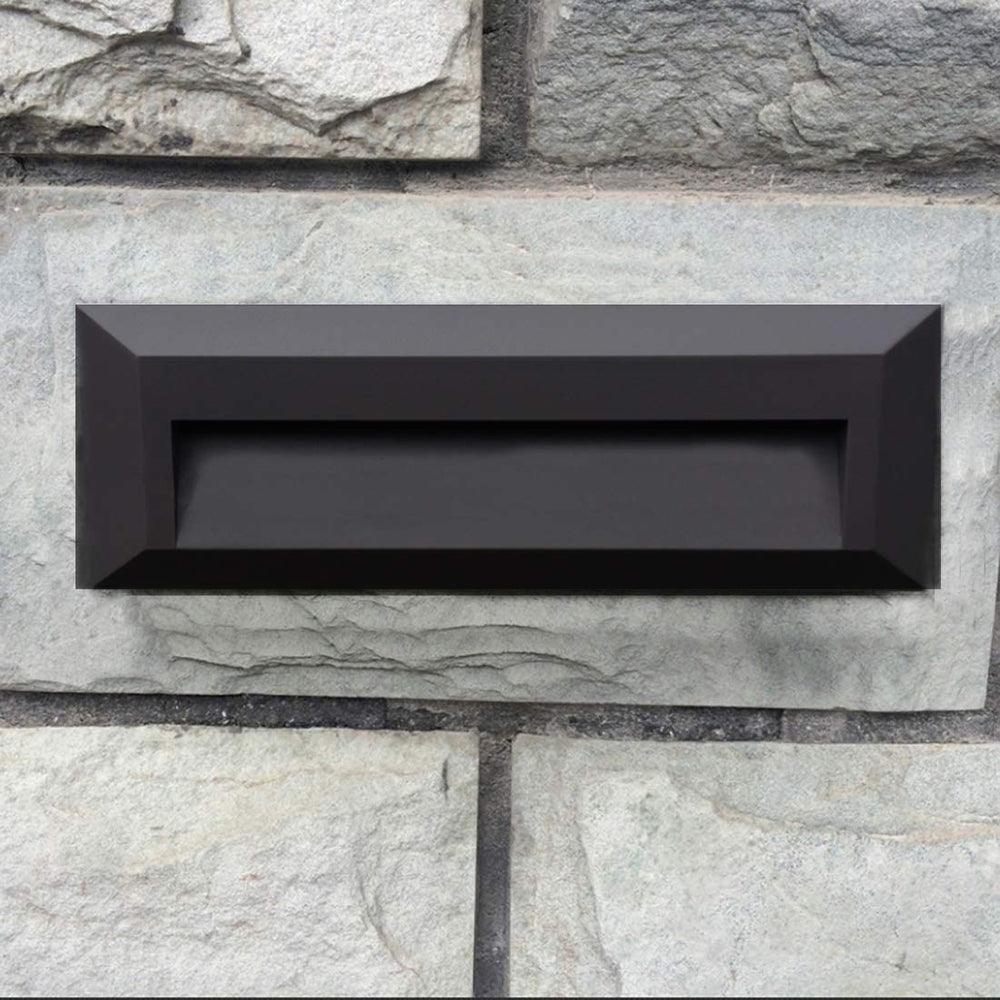

• Surface-Mount Simplicity: No recess needed—just drill a wire hole, secure the light, and seal for a clean, flush finish.

• Durable Construction: Cast aluminum housing ensures resistance to corrosion, UV, and physical impact, perfect for high-traffic areas.

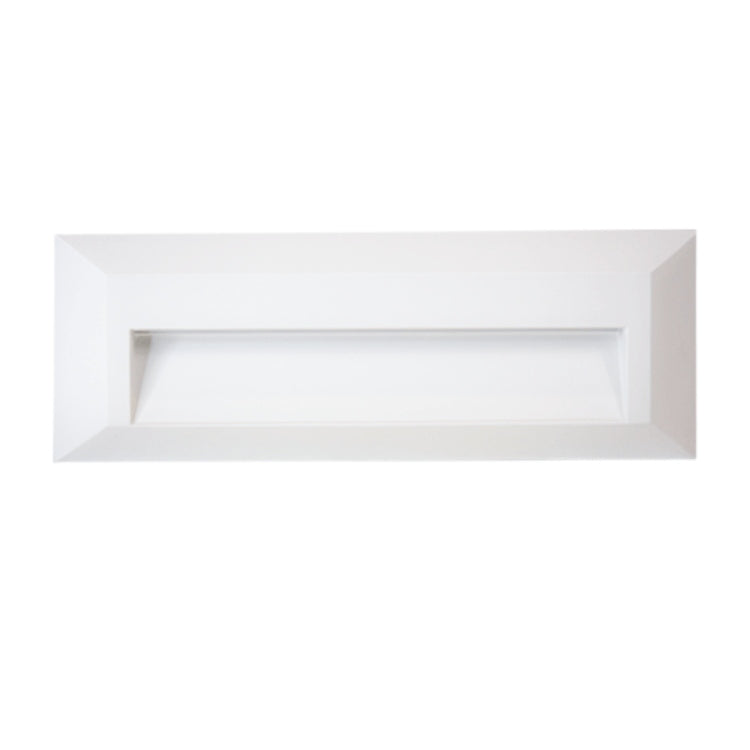

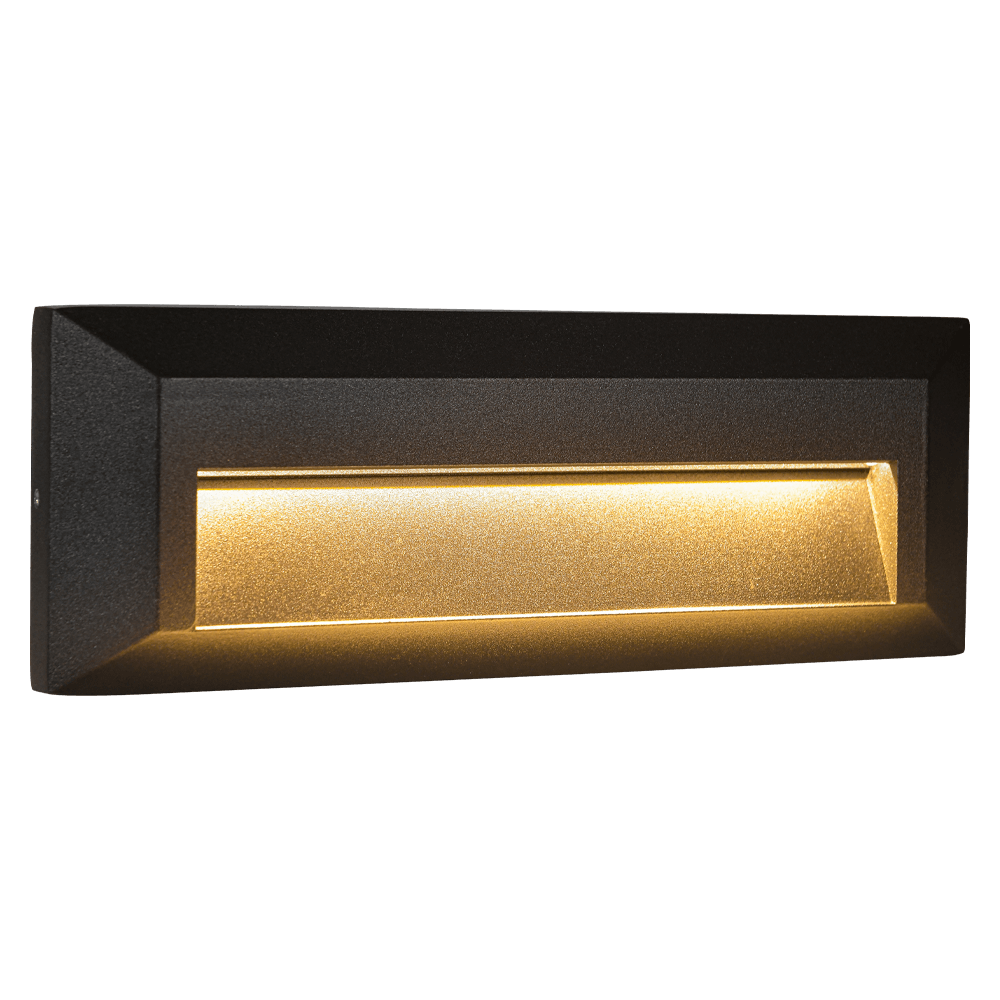

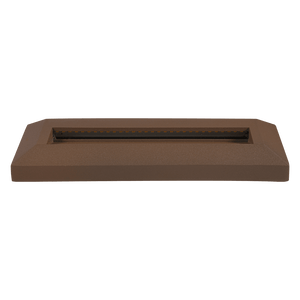

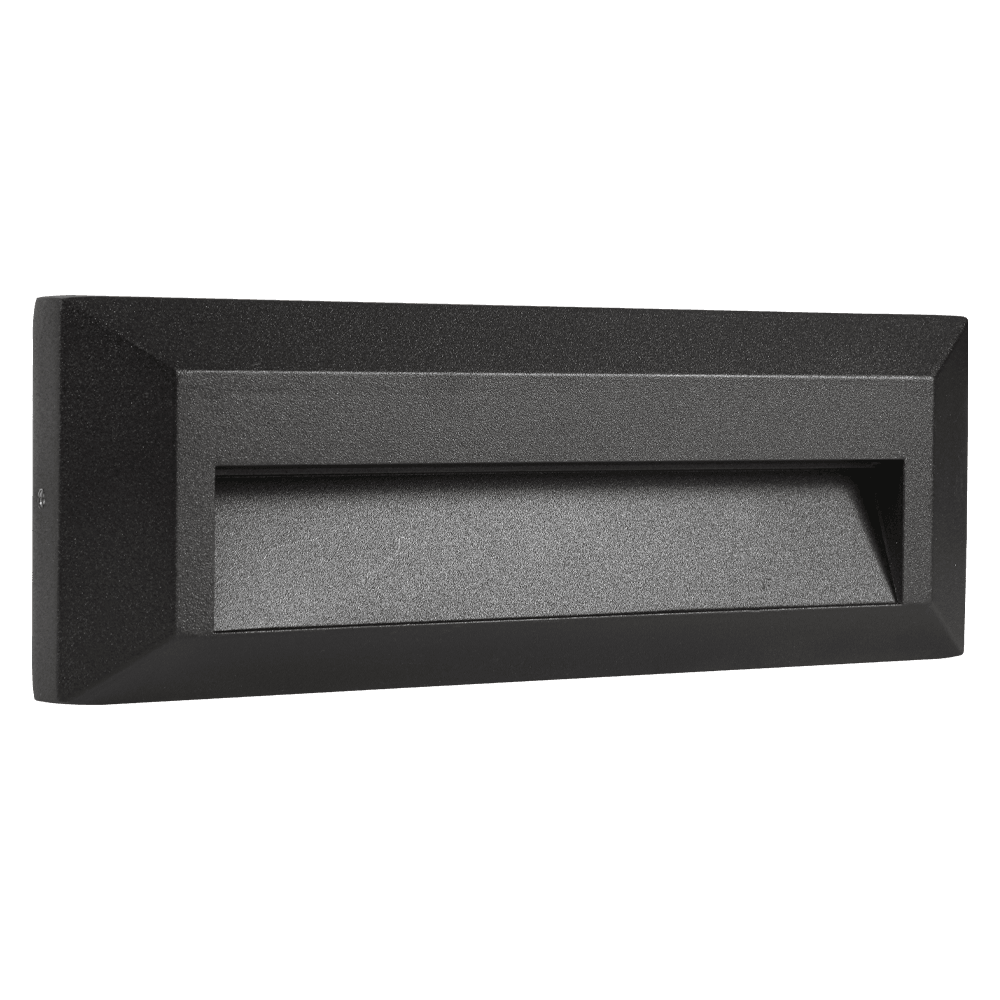

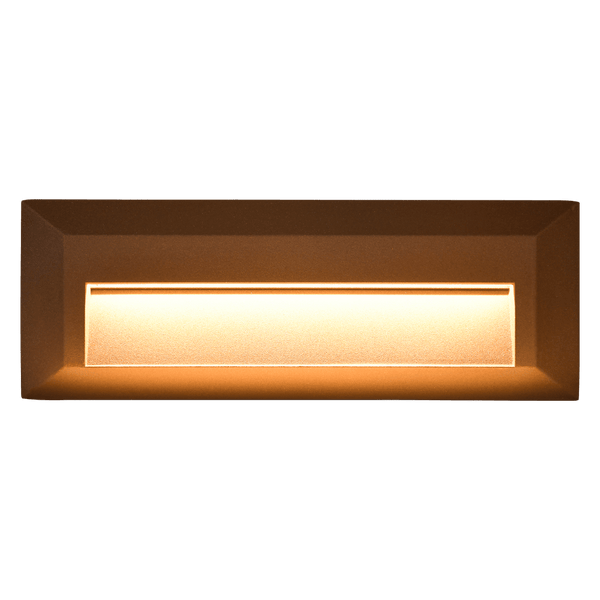

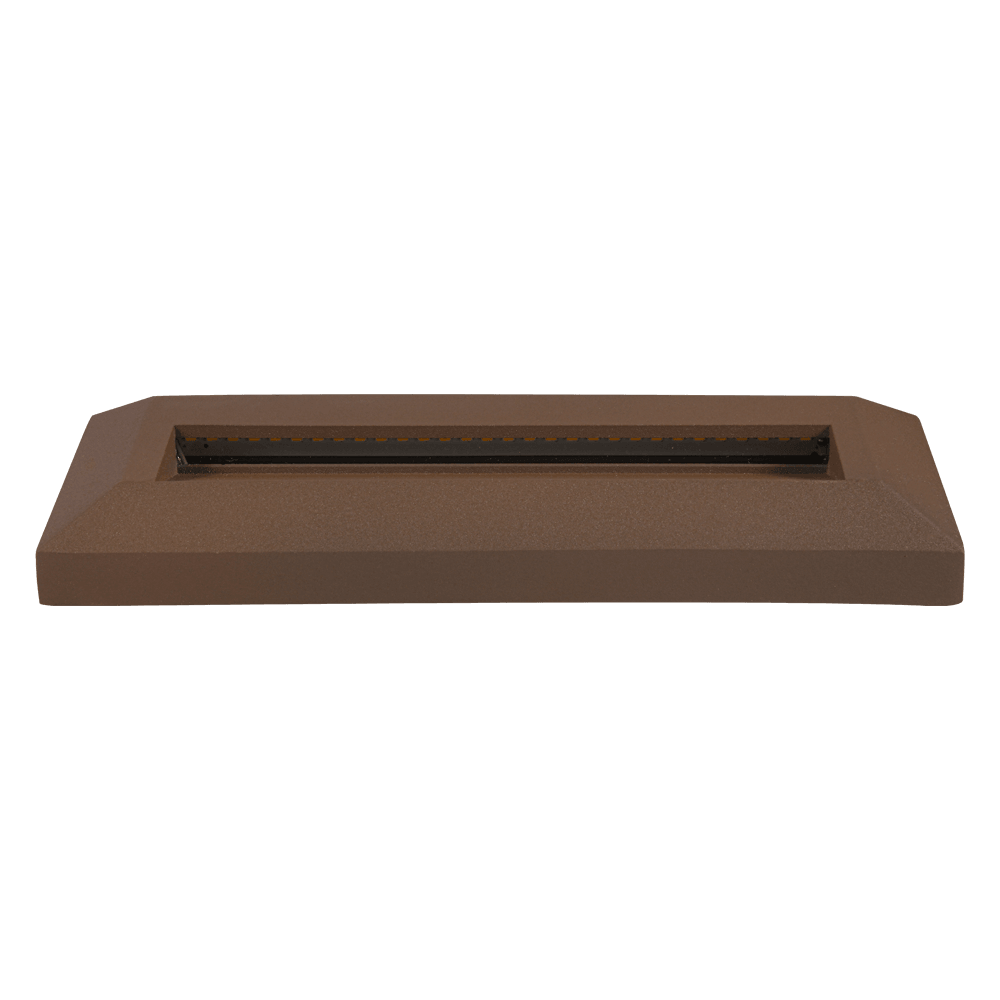

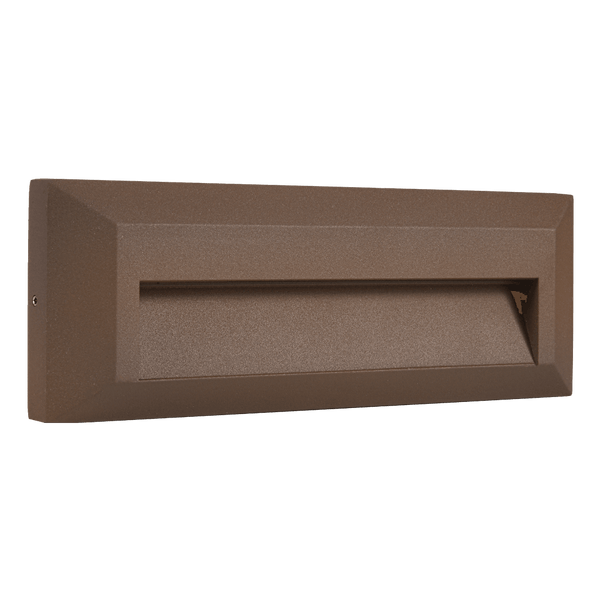

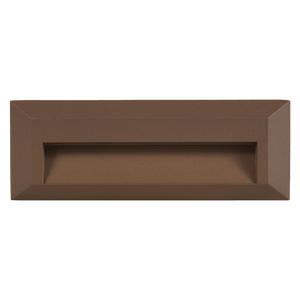

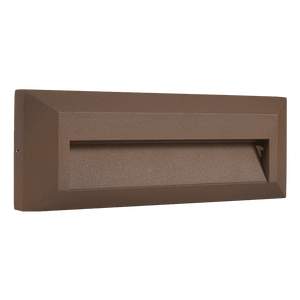

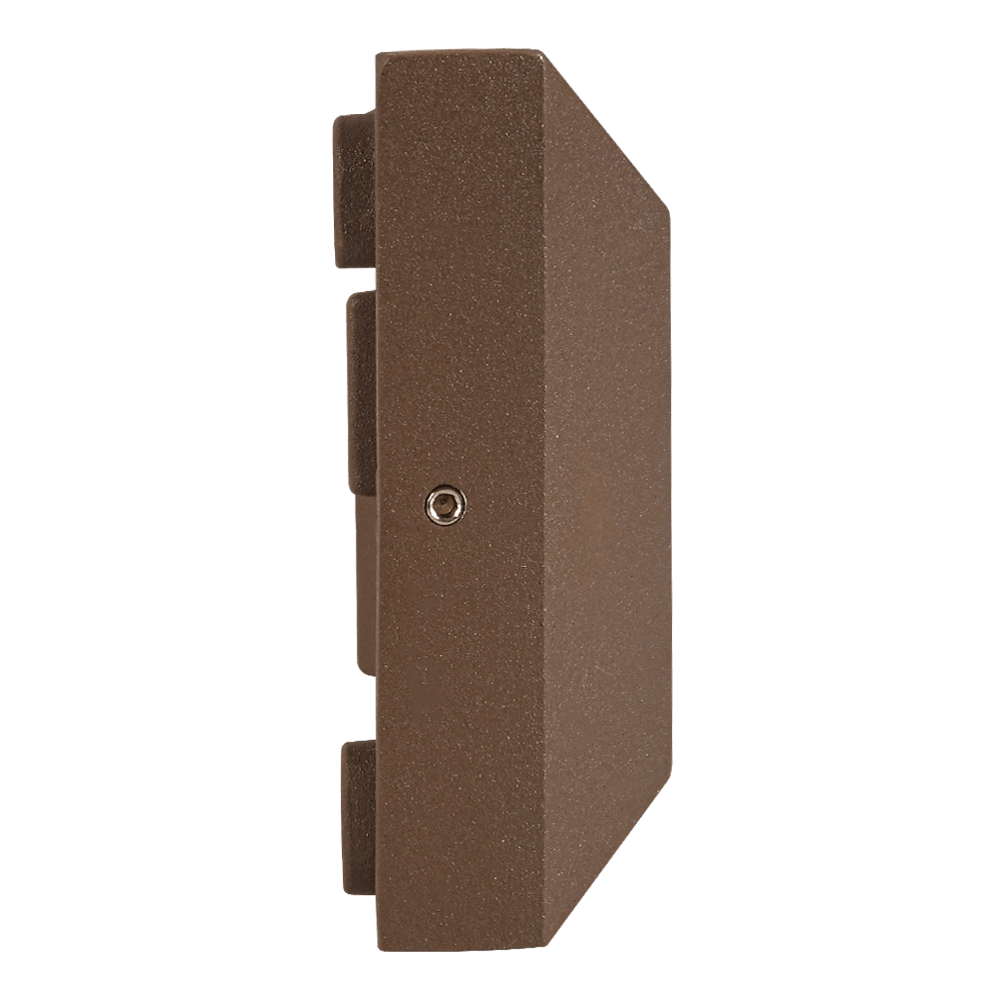

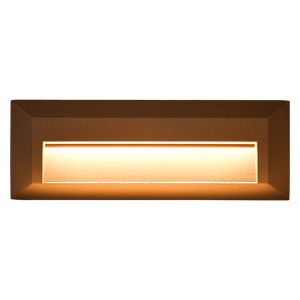

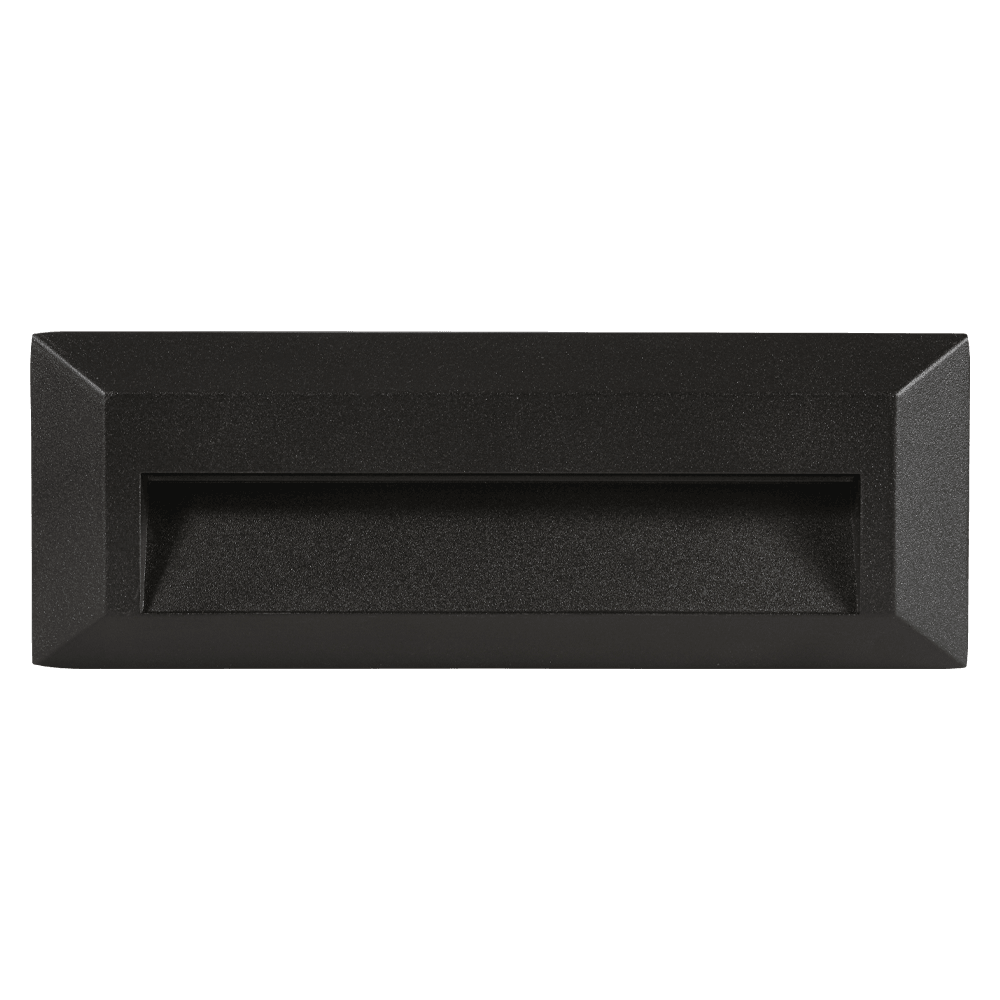

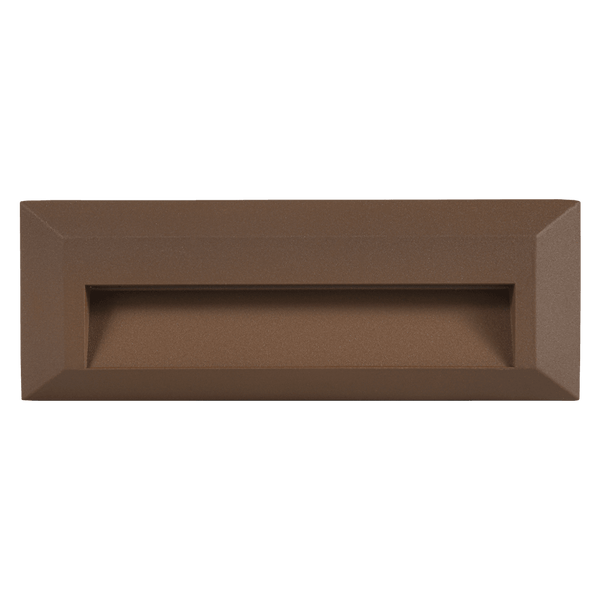

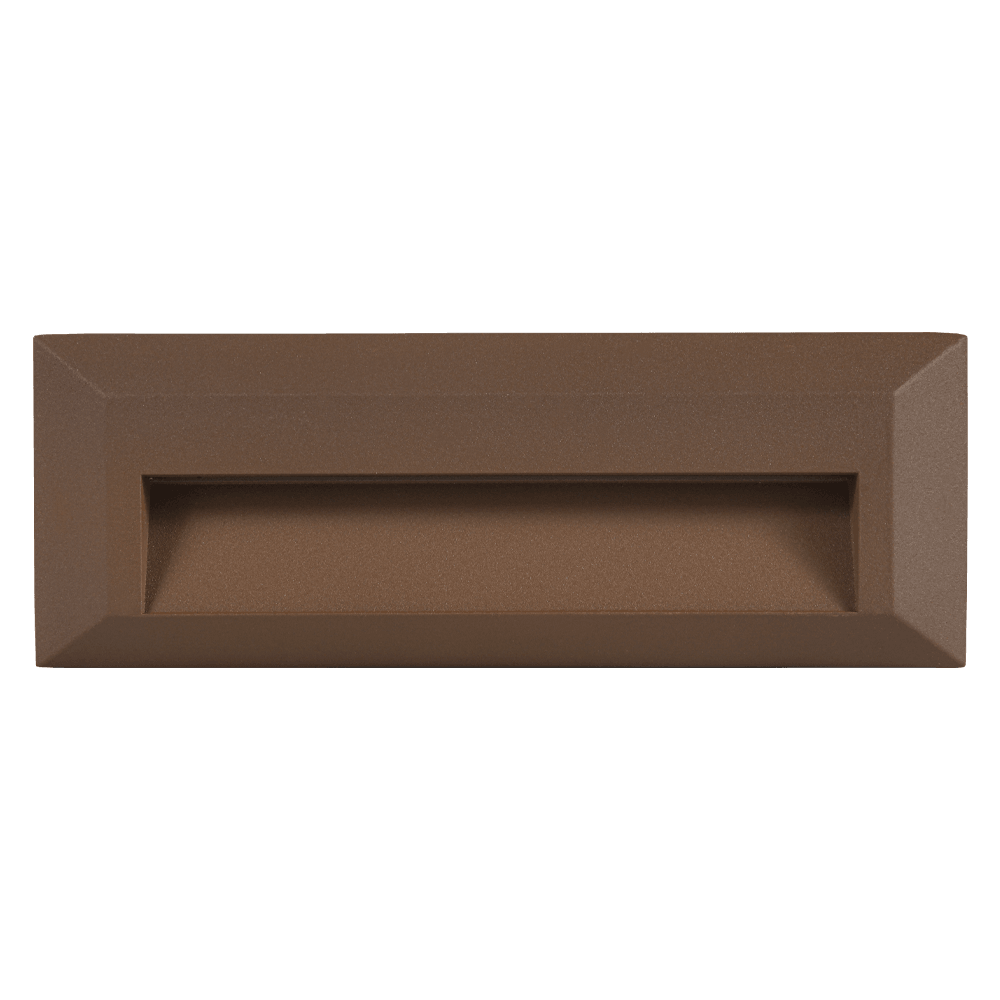

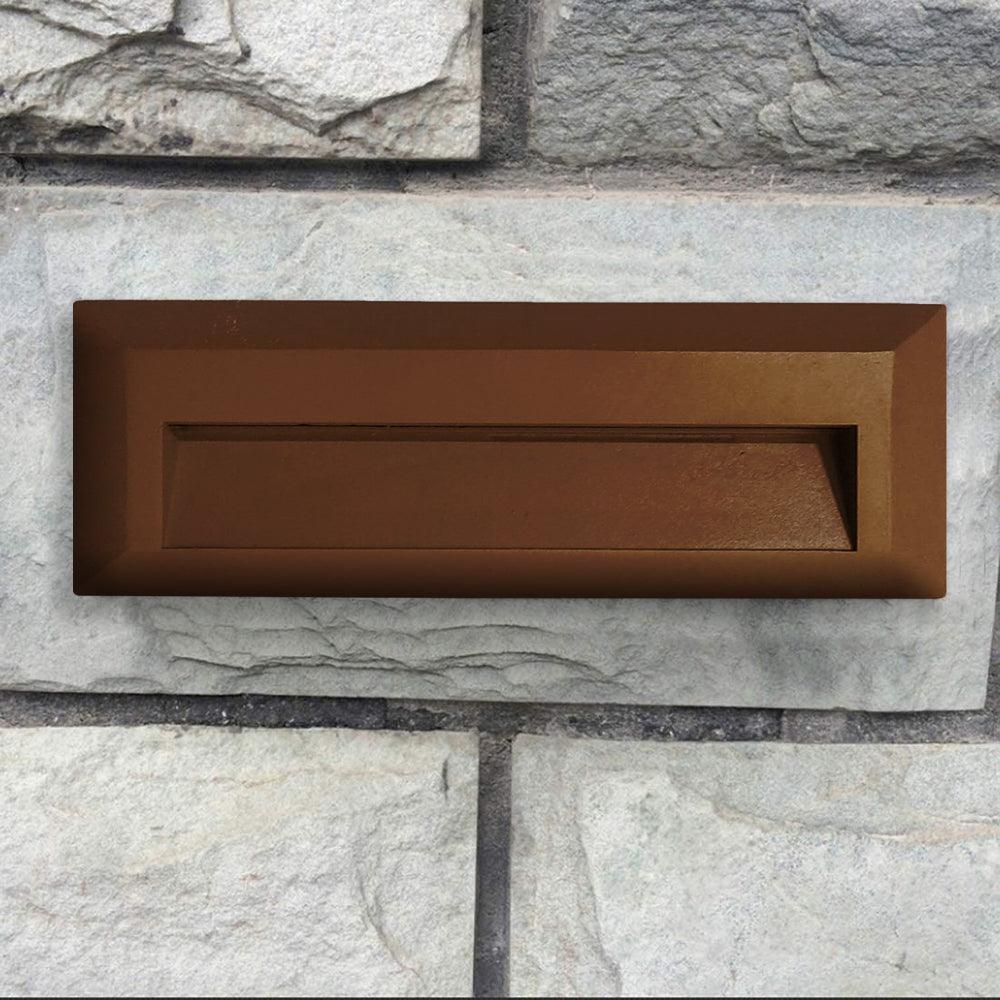

• Three Finishes: Choose Black, Brown, or White to complement various color palettes and architectural styles.
