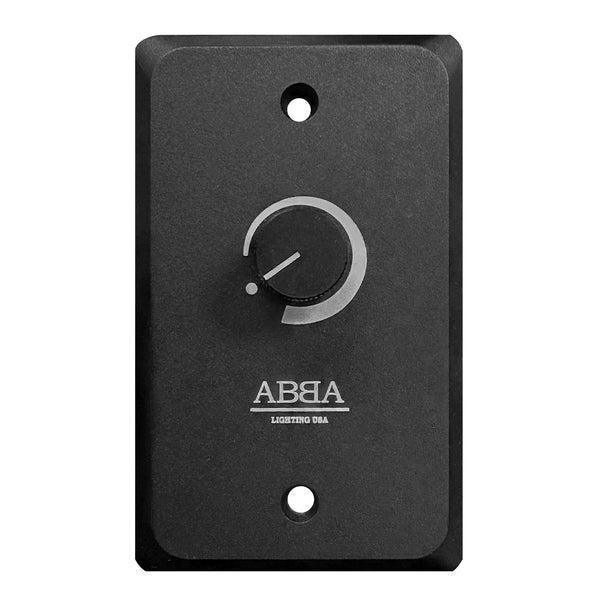

The DMR20W is a compact, heavy-duty low-voltage dimmer designed to give you smooth brightness control across your 12–15 VAC landscape lighting runs. Built for reliability and simplicity, it allows installers and homeowners to fine-tune light levels without changing transformers or rewiring entire systems — making it an ideal accessory for paths, gardens, hardscapes, and architectural accent lighting powered by low-voltage fixtures.

Key Features & Benefits

• Designed for 12–15 VAC systems
  Engineered specifically for standard low-voltage landscape lighting, the DMR20W integrates into 12–15 VAC lines, making it an excellent fit for LED or halogen fixtures driven by a landscape transformer.
• Up to 120W / 10A load capacity
  With support for 120 W maximum power and 10 amps (MAX) capacity, this dimmer can control a substantial group of fixtures on a single run — ideal for small to mid-sized lighting zones without needing multiple controllers.
• Precise brightness control
  Instead of being locked into full-brightness output from your transformer, the DMR20W lets you adjust light levels to suit the mood, reduce glare, or balance intensity between different areas of the landscape.
• Low-voltage, user-friendly solution
  Because it operates on the low-voltage side (12–15 VAC), the dimmer works within the same environment as your fixtures and cabling, helping keep wiring simpler and safer compared with line-voltage wall dimmers.
• Rugged black finish
  The black finish helps it blend into transformer enclosures, junction areas, or discreet mounting points, keeping the focus on your lighting design rather than the control hardware.
• Built for challenging temperatures
  Rated to operate in ambient conditions down to approximately −20°, the DMR20W is suitable for cold-weather regions where outdoor components must remain dependable in low temperatures.

Typical Applications

The DMR20W is ideal wherever you want finer control over brightness in a 12–15 VAC lighting setup, such as:

• Path & walkway lighting
  Reduce output to create a softer, more comfortable glow along walkways and garden paths while still maintaining safe visibility.
• Accent & feature lighting
  Tune brightness on tree up lights, wall washers, or sculpture spotlights so they complement the rest of the scene instead of overpowering it.
• Outdoor seating & entertainment areas
  Dial lights down for a relaxed evening atmosphere on patios, decks, or pergolas, then bring them up when more task lighting is needed.
• Zoned landscape systems
  Use a DMR20W on individual runs or zones to balance intensity between different parts of the property — for example, a brighter driveway zone and a dimmer garden zone.
• Installation & Best-Practice Notes
• Location & protection
  Because of the IP2- rating, always mount the dimmer in a protected environment: inside a weatherproof box, transformer cabinet, or other enclosure shielded from direct water exposure.
• Match load to rating
  Check the total wattage of all fixtures on the controlled run. Ensure the combined load stays at or below 120 W and 10 A to avoid overload and maintain long-term reliability.
• Placement in the circuit
  Install the DMR20W on the low-voltage side, between the transformer’s 12–15 VAC output and the fixture run you want to control. Follow polarity and wiring guidelines appropriate for your system.
• Multiple zones
  For multi-zone systems, use one DMR20W per circuit you want individually dimmable. This allows one transformer to supply several branches at different brightness levels, each managed by its own dimmer.
• Testing and adjustment
  After wiring, bring the system up at a conservative dim level first, then gradually increase brightness to confirm stable operation and desired appearance before closing up enclosures.

Why Choose the DMR20W

The DMR20W gives landscape designers, installers, and homeowners a simple, low-voltage way to control light levels without redesigning power infrastructure or relying on complicated smart controls. Its 120 W / 10 A capacity, 12–15 VAC operating range, and robust low-temperature rating make it a practical choice for a wide variety of outdoor lighting setups.

With its black finish, compact footprint, and straightforward integration, the DMR20W is an easy add-on that significantly upgrades the flexibility and comfort of any low-voltage lighting system.
